System 6.0

Highlights

  • 2mm outer wall thickness.
  • Glued corner connector for all outer corners
  • Lingel Ss Grade Hardware

Designed That

  • All our successful Upvc Hardware Accessories can be used
  • Chambers can be steel reinforced for additional strength for hardware

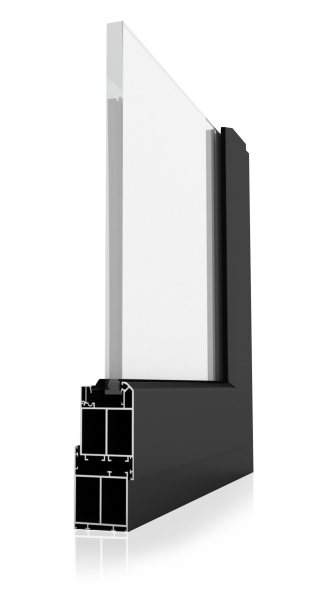

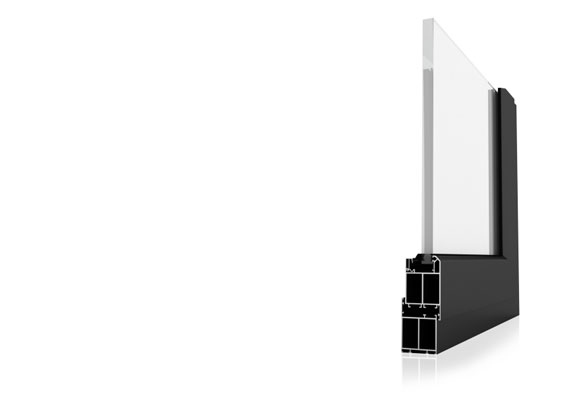

CASEMENT DOOR

Highlights

  • 60MM WIDE SECTION FOR FRAME AND SHUTTER
  • FIRSST IN CLASS DOUBLE CORNER CONNECTORS USED FO FRAMES AND SHUTTERS
  • Corner connector's machinery pressed to join the profiles and connector.
  • Heavy section of more than 2kg per meter

Designed That

  • Heavy duty hinges for weight upto 120 kg per shutter can be used.
  • Glass Thickness upto 36mm

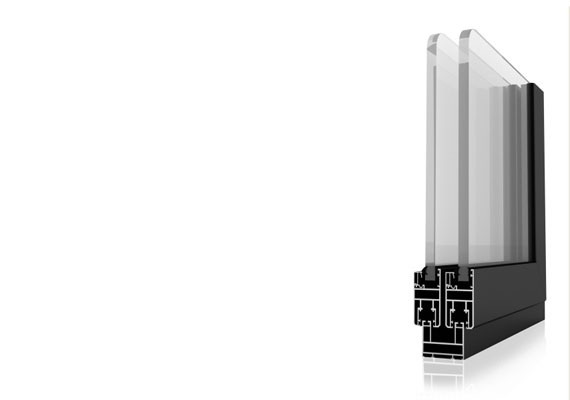

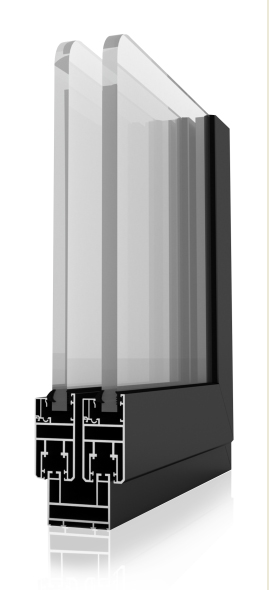

TWO TRACK SLIDER

Highlights

  • 60mm wide section for frame 40mm wide shutters
  • First in class 45 degree corner cutting all the shutters and frames.
  • First in class Glazing Bead System for sliders.
  • Shutters get fabricated to hold the glass
  • The Shutter is pressed around the glass and screwed.

Designed That

  • Type A roller that can hold the weight upto 120 kg C roller with weight upto 200 kgs and type D roller whcih can hold weight upto 300 Kgs.
  • Glass thickness upto 24 mm

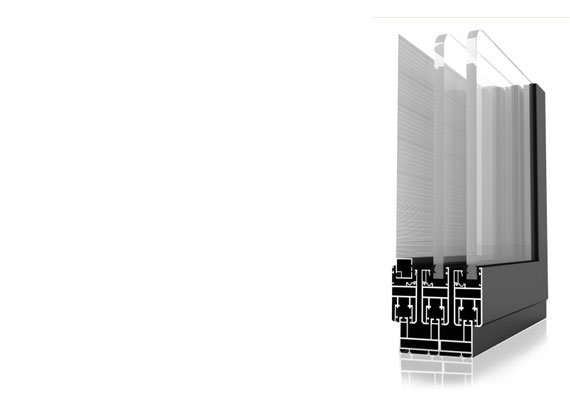

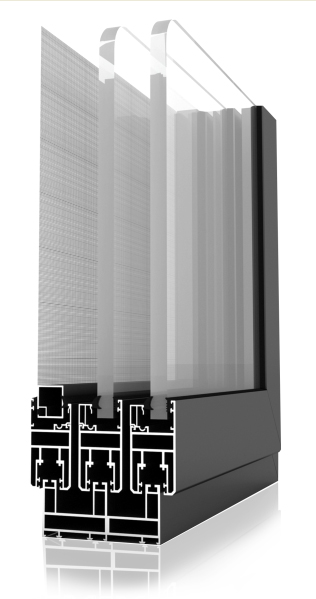

THREE TRACK SLIDER

Highlights

  • 107 mm wide section for frame 40 mm wide shutters
  • Multiple numbers of tracks can be added
  • Sliding shutter can be added with all kind of insect meshes
  • SS 304 / USA Fabric Mesh/High security screen
  • First in class 45 degree corner cutting for all the shutters and frames
  • First in class glazing bead systems for sliders
  • Shutter is getting fabricated for holding the glass
  • The shutter is pressed around the glass and screwed

Designed That

  • Type A roller that can hold the weight upto 120 kg C roller with weight upto 200 kgs and type D roller whcih can hold weight upto 300 Kgs.
  • Glass thickness upto 24 mm
